Imaging artifacts will arise due to false interpretations by ultrasound machines. It is important to understand that image artifacts can aid or impede ultrasound imaging interpretation. POCUS often relies on the understanding of artifacts to obtain qualitative information on the structure of interest.

Types of artifacts:

• Acoustic shadowing
• Refraction
• Reverberation
• Enhancement
• Mirror imaging

Acoustic shadowing

Acoustic shadowing is caused by a structure that is more or less dense than soft tissue (e.g., bone or lung). It will result in the loss of the ultrasound signal due to scattering and reflection of the ultrasound beam.

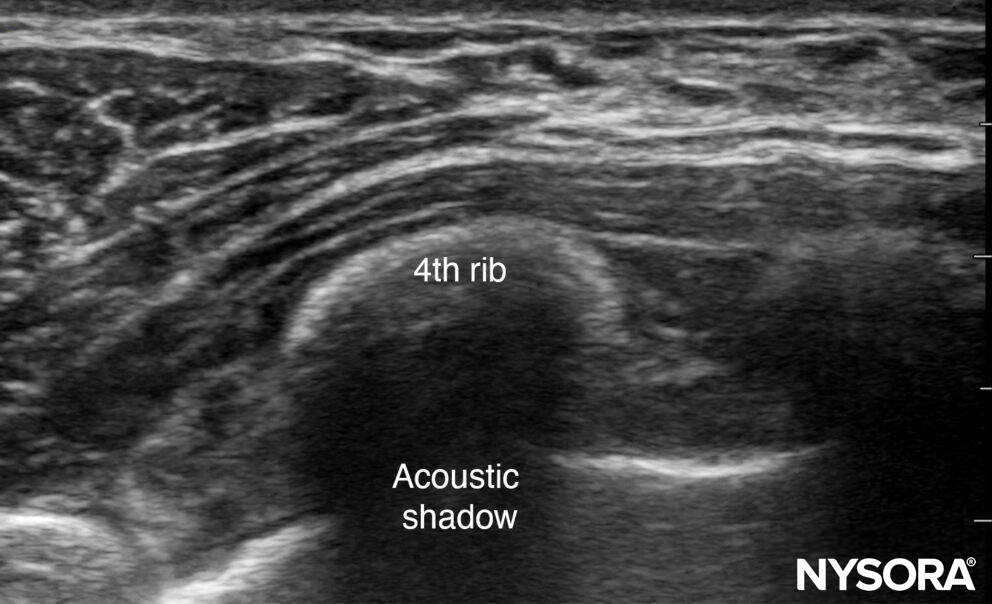

Acoustic shadowing.

Refraction

Refraction is the appearance of the sound wave being bent when the ultrasound beam obliquely crosses an interface with tissues with different densities and, thus, different propagation speeds. It may result in an acoustic shadow at the interface boundary or a duplication artifact.

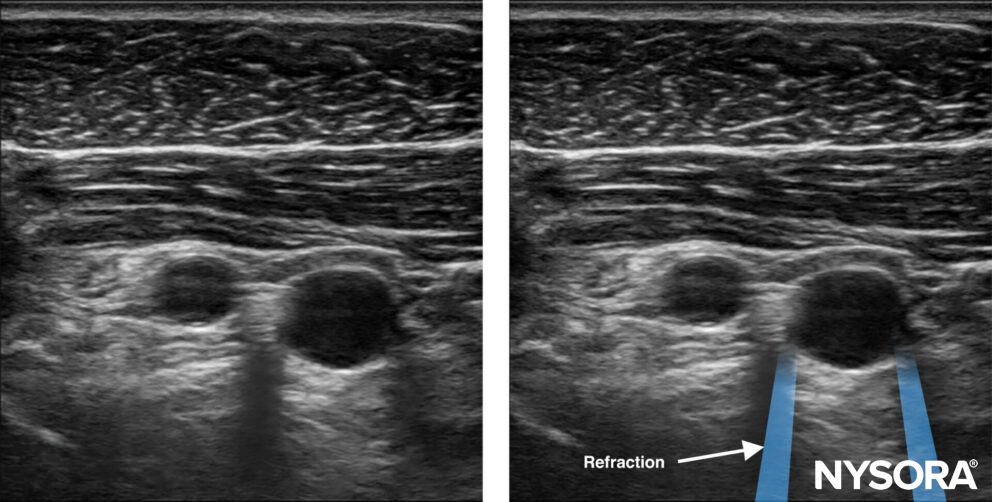

Refraction artifacts occur at the edges of vessels.

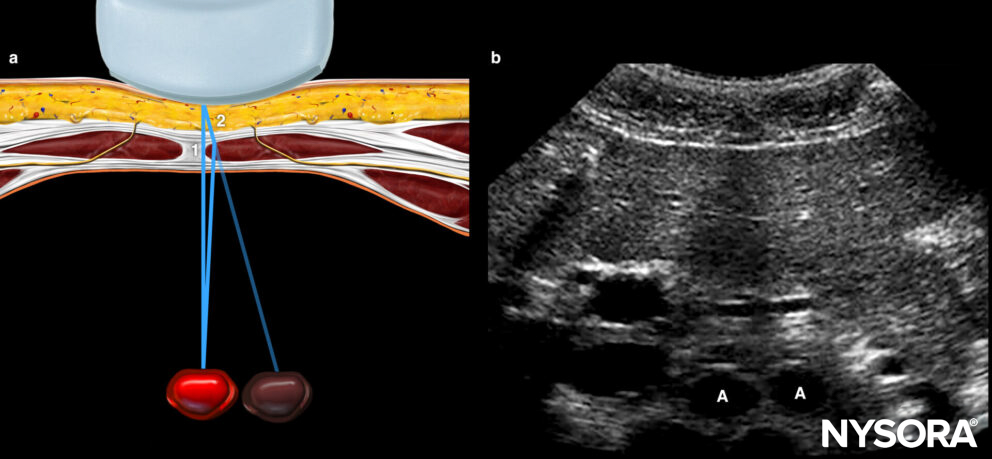

Illustration (a) shows how sound beam refraction results in a duplication artifact. (b) is a transverse midline view of the upper abdomen showing duplication of the aorta (A) secondary to rectus muscle refraction. The ultrasound figure was published in Atlas of Ultrasound-guided Procedures in Interventional Pain Management, Copyright Elsevier (2004).

Reverberation

Reverberation is the repetitive reflection of the sound wave between two reflective layers. It will result in horizontal lines with the same interspace.

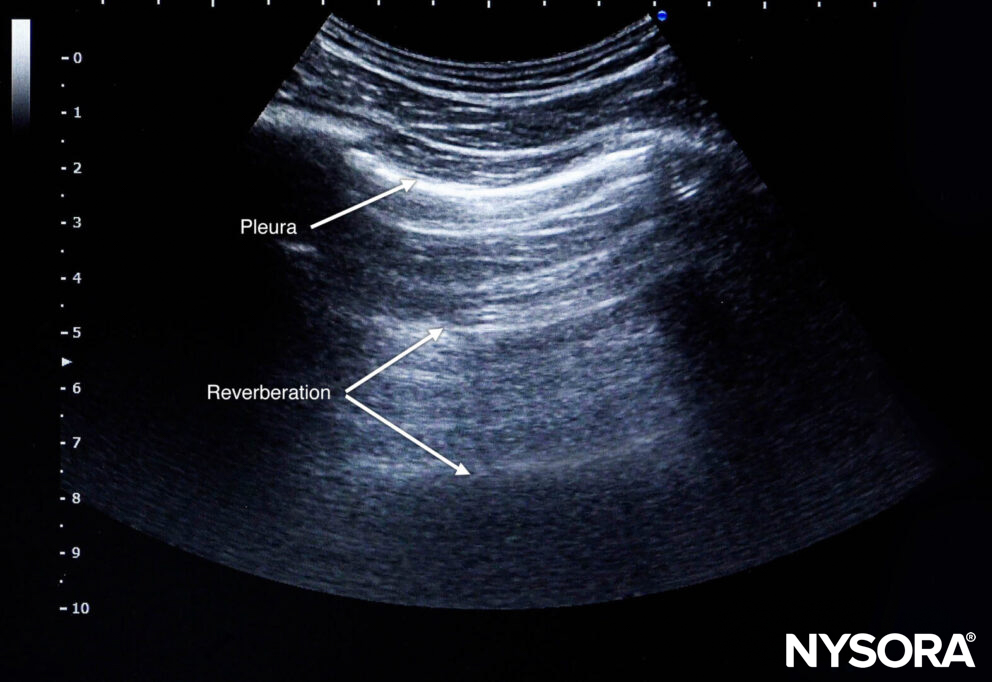

Reverberation.

Enhancement

Sound waves travel faster in structures with low acoustic impedance, resulting in brighter areas directly below these structures (e.g., bladder, vessels). Enhancement can make it harder to visualize underlying structures.

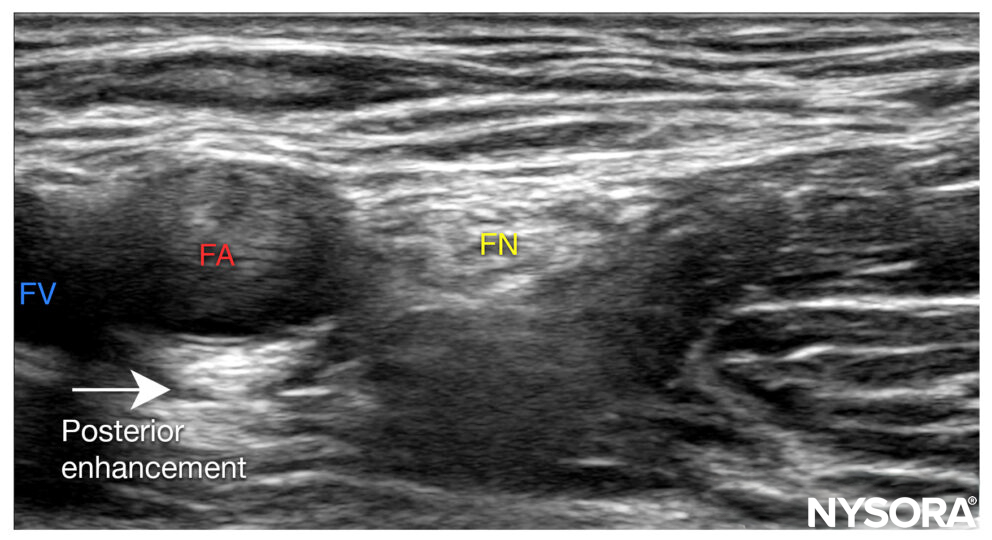

Posterior enhancement.

Mirror imaging

Reflective layers can result in ‘ghost’ images by the reflection of ultrasound waves from different directions. Mirrored structures can be found on the ultrasound image but not in the original structure.

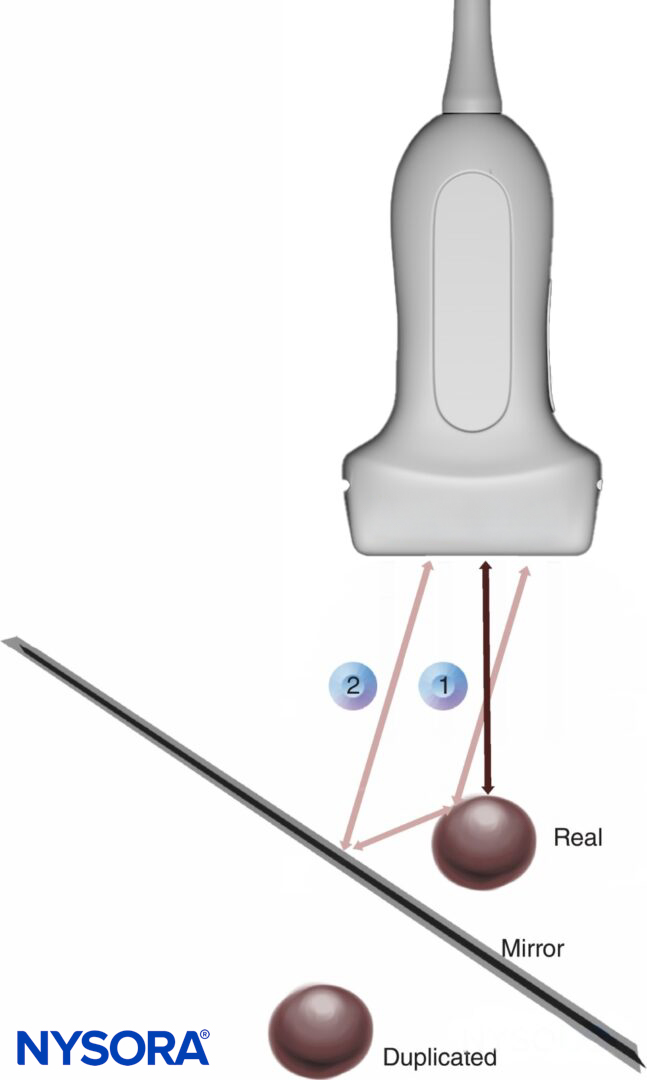

Mirror image: 1. Real or direct reflection of the ultrasound wave, 2. False or indirect reflection of the ultrasound wave.

Interesting fact

• By moving the transducer, the mirrored structure will disappear, but the original structure will remain.

Mirror imaging of the inferior caval vein (IVC), liver, and right atrium (RA).
