Rafael Blanco and Michael J. Barrington
Pectoralis nerve (Pecs) and serratus plane nerve blocks are newer ultrasound (US)-guided regional anesthesia techniques of the thorax. The increasing use of ultrasonography to identify tissue layers and, particularly, fascial layers has led to the development of several newer interfascial injection techniques for analgesia of the chest and abdominal wall. For instance, the Pecs I nerve block was devised to anesthetize the medial and lateral pectoral nerves, which innervate the pectoralis muscles.
This is accomplished by an injection of local anesthetic in the fascial plane between the pectoralis major and minor muscles. The Pecs II nerve block (which also includes the Pecs I nerve block) is an extension that involves a second injection lateral to the Pecs I injection point in the plane between the pectoralis minor and serratus anterior muscles with the intention of providing block of the upper intercostal nerves. A further modification is the serratus plane nerve block, in which local anesthetic is injected between the serratus anterior and latissimus dorsi muscles.
These interfascial injections were developed as alternatives to thoracic epidural, paravertebral, intercostal, and intrapleural nerve blocks, primarily for analgesia after surgery on the hemithorax. Initially, Pecs nerve blocks were intended for analgesia after breast surgery; however, case reports have also described the use of Pecs and serratus plane nerve blocks for analgesia following thoracotomy and rib fracture. Information from the currently published literature on Pecs and serratus plane nerve blocks in peer-reviewed journals is summarized in Table 1.
TABLE 1. Summary of published controlled clinical trials and case reports.
|Author, Year||Study Type||Surgery/Indication||Block Type||N||Injectate||Outcome|
|Blanco et al., 2013||Volunteer study||–||Serratus plane||4||0.4 mL/kg levobupivacaine|
0.125% and gadolinium
|Mean duration of paresthesia in the intercostal nerve distribution T2–T9, was 752 minutes (injection superficial to serratus anterior)|
|Wahba and Kamal, 2014||Randomized controlled trial||Mastectomy||Pecs II versus PVB||60||0.25% levobupivacaine:|
15–20 mL T4 PVB,
10 mL Pecs I block
Pecs blocks reduced postoperative morphine consumption (first 24 h) and pain scores (first 12 h) in comparison with PVB following mastectomy
|Fujiwara et al., 2014||Case report||Insertion of cardiac resynchronization device||Intercostal at first and second interspace, Pecs I block||1||0.375% ropivacaine:|
4 mL intercostal block,
10 mL Pecs I block
|Surgery performed under intercostal/
Pecs I blocks and dexmedetomidine
et al., 2014
|Case report||Analgesia for rib fracture||Serratus plane||1||20 mL bolus 0.125% bupivacaine, then infusion of 0.0625% bupivacaine at 7–12 mL/h||Effective analgesia to enable physiotherapy and ambulation|
et al., 2015
|Case report||Analgesia for thoracotomy||Serratus plane||1||6 mL bolus 1% lignocaine, then infusion of bupivacaine 0.1% at 7 mL/h||Improvement in pain and ventilation|
|Murata et al., 2015||Case report||Breast surgery||Pecs II||2||35 mL 0.2% ropivacaine (mastectomy); 45 mL 0.2% ropivacaine (lumpectomy)||Mastectomy performed under Pecs II block and supplemental infiltration|
|Ueshima, 2015||Case report||Segmental breast resection||TTP combined with Pecs II||1||0.15% levobupivacaine:|
15 mL TTP,
10 mL Pecs I,
20 mL Pecs II
|Surgery performed under TTP and
Pecs II blocks
|Bashandy and Abbas, 2015||Randomized controlled trial||Mastectomy||Pecs II||120||0.25% bupivacaine:|
10 mL Pecs I,
20 mL Pecs II
|Lower visual analog scale pain scores and opioid requirements in the Pecs group compared to control group|
|Kulhari, 2016||Randomized controlled trial||Radical mastectomy||Pecs II versus PVB||40||25 mL 0.5 % ropivacaine||Duration of analgesia increased in Pec’s block compared to PVB group (4.9 versus 3.3 hours)|
|Hetta, 2016||Randomized controlled trial||Radical mastectomy||Serratus plane||64||30 mL 0.25 % bupivacaine, Serratus plane; 15 mL 0.25% bupivacaine, PVB||Increased opioid consumption in the serratus plane compared to the PVB group|
Pecs nerve blocks have also been proposed in letters to the editor as alternative techniques to anesthetize operative regions such as the axilla, proximal medial upper arm, and posterior shoulder, which are not innervated by the brachial plexus (Figure 1).
ANATOMY OF THE PECTORAL AND AXILLARY REGIONS
Pecs nerve blocks are applied in the pectoral and axillary regions, with the muscles in both regions innervated by the brachial plexus. The pectoral region overlies the pectoralis major muscle and is limited by the axillary, mammary, and inframammary regions (Figure 2).
The axillary region is lateral to the pectoral region and consists of the area of the upper chest that surrounds the axilla. In both regions, there are muscles, nerves, and vessels within the fascial layers (Figure 3). In the pectoral region, there are four muscles relevant to Pecs nerve blocks: the pectoralis major, pectoralis minor, serratus anterior, and subclavius muscles. The pectoralis major and minor muscles are innervated by the lateral and medial pectoral nerves; the serratus anterior is innervated by the long thoracic nerve (C5, C6, and C7); and the subclavius is innervated by the upper trunk of the brachial plexus (C5 and C6).
The axillary region is a pyramidal structure with four borders:
1. The apex or axillary inlet, formed by a lateral border of the first rib, superior border of the scapula, and the posterior border of the clavicle
2. The anterior border, formed by the pectoralis major and minor muscles
3. The lateral border, formed by the humerus
4. The posterior border, formed by the teres major, latissimus dorsi, and subscapularis muscles.

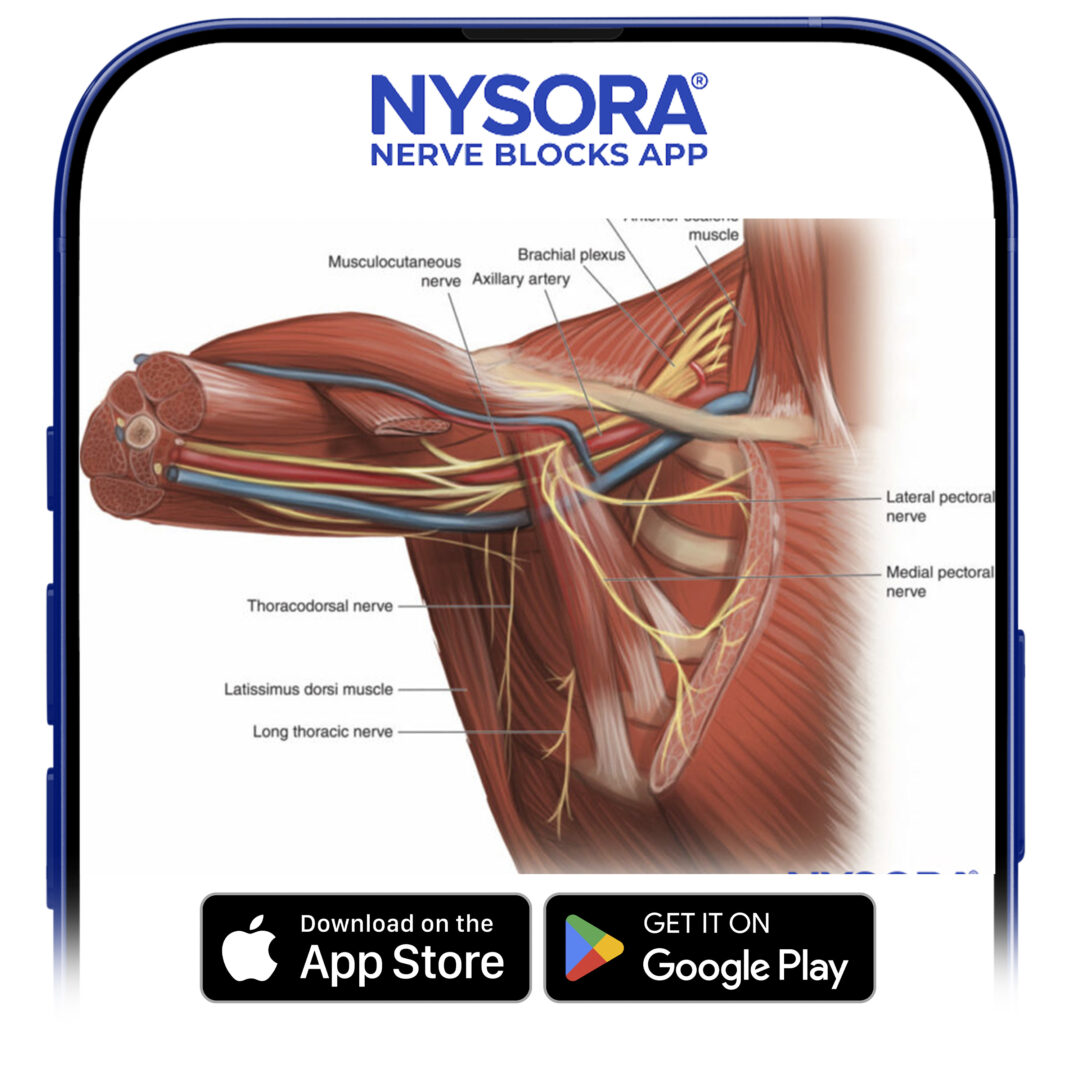

Figure 2, the muscles, nerves, and vessels relevant to Pecs and serratus plane nerve blocks are summarized in Tables 2, 3 and 4 respectively.
TABLE 2. Nerves relevant to pecs and serratus plane nerve blocks.
(C5, C6, C7)
|Serratus anterior muscle||Known as the nerve to the serratus anterior.|
|Lateral pectoral||Lateral cord|
(C5, C6, C7)
|Pectoralis major and pectoralis minor muscles||Penetrates the clavipectoral fascia to supply the pectoralis major directly and, through communication with the medial pectoral nerve, the pectoralis minor. There is no cutaneous branch. Can be located on the deep surface of the pectoralis major.|
|Medial pectoral||Medial cord|
|Pectoralis major and pectoralis minor muscles||Penetrates the deep surface of the pectoralis minor to innervate this muscle before penetrating it to supply the pectoralis major muscle.|
|Intercostal||Anterior rami of thoracic spinal nerves||Segmental somatic sensory innervation to skin||Lateral cutaneous branches of T2-T6 innervate the lateral breast. Accessible in the mid-axillary line.|
|Thoracodorsal||Posterior cord (C6, C7, C8)||Latissimus dorsi muscle||Large nerve from the posterior cord, which has a course in the posterior axillary wall, crosses the lower border of the teres major to enter the deep surface of the latissimus dorsi muscle. The thoracodorsal nerve is adjacent to the thoracodorsal artery.|
TABLE 3. Muscles relevant to pecs and serratus plane nerve blocks.
|Pectoralis major||Medial (C8, T1) and lateral|
(C5–C7) pectoral nerves
|Pectoralis minor||Both pectoral nerves (C5–C8)||Sonographic landmark.|
|Serratus anterior||Long thoracic nerve (C5–C7)||Sonographic landmark for Pecs II and serratus plane blocks. The
intercostobrachial, long thoracic, and thoracodorsal nerves lie on
this muscle. The thoracodorsal artery is superficial to this muscle.
|Teres major||Subscapular nerve (C5–C6)|
(offspring of subscapularis
|Contributes to the posterior wall of the axilla.|
|Subscapularis||Upper and lower subscapular|
|Contributes to the posterior wall of the axilla.|
|Latissimus dorsi||Thoracodorsal nerve (C6–C8)||Contributes to the posterior wall of the axilla; sonographic landmark
for serratus plane blocks.
TABLE 4. Vessels relevant to pecs and serratus plane nerve blocks.
|Axillary||Is the continuation of the subclavian artery after it passes the lateral border of the first rib. It lies
lateral to the axillary vein. It gives of the branches listed below.
|Superior thoracic||Branch of the first part of the axillary artery; supplies both pectoral muscles.|
|Thoracoacromial||Arises from the second part (deep to the pectoralis minor) of the axillary artery, close to the upper
border of the pectoralis minor; pierces the clavipectoral fascia in the infraclavicular fossa; has four
branches that may arise deep or superficial to the clavipectoral fascia.
|Lateral thoracic||Follows the lower border of the pectoralis minor; supplies both pectoral muscles.|
|Thoracodorsal||Arises from the third part (distal to the pectoralis minor) of the axillary artery; initially known as
the subscapular artery, located in the posterior axillary wall (largest branch of the axillary artery),
before becoming the thoracodorsal artery; has a course with the thoracodorsal nerve, which
innervates the latissimus dorsi.
The pectoral and axillary regions are separated by fascias. In the pectoral region, there are two main fascias: the superficial fascia and the deep thoracic fascia. The deep thoracic fascia divides into three separate fascias: the pectoral (superficial), clavipectoral (intermediate), and exothoracic (deep). The clavipectoral fascia stretches between the clavicle and the pectoralis minor (Figure 4) and encloses the pectoralis minor with a thin layer of fascia. Between the pectoralis minor and subclavius muscles, the two layers of the clavipectoral fascia fuse.
Caudal to the pectoralis minor, the clavipectoral fascial layers rejoin to form the suspensory ligament of the axilla, which is joined to the axillary fascia (Figure 5).
At the pectoral level, the fascias create four potential compartments for the injection of local anesthetic:
- Between the superficial and deep pectoral fascial layers
- Between the pectoral fascia and the clavipectoral fascia
- Between the clavipectoral fascia and the superficial border of the serratus anterior muscle
- Between the serratus anterior muscle and the exothoracic fascia
The first two compartments are in the pectoral region, but the third and fourth communicate with the axillary region. The nerves and vessels in this region create communications by crossing the compartments. The nerves of the pectoral region are mainly the lateral and medial pectoral nerves, but there is also an important innervation from the supraclavicular nerve and from the lateral and anterior branches of the intercostal nerves. The lateral pectoral nerve crosses the axillary artery anteriorly and pierces the clavipectoral fascia in close relationship with the thoracoacromial artery on the undersurface of the upper portion of the pectoralis major muscle, which it supplies with lateral cord fibers from C5–C7 (Figure 6).
The lateral pectoral nerve is medial to the pectoralis minor before entering the pectoralis major muscle; it communicates across the axillary artery with the medial pectoral nerve and, through this communication (via ansa pectoralis), supplies the pectoralis minor. The medial pectoral nerve arises from the medial cord fibers from C8–T1, behind the axillary artery at the level below the clavicle, and passes through the deep surface of the pectoralis minor, which is perforated and then enters and innervates pectoralis major. Both pectoral nerves enter the deep surface of the pectoralis major, and neither has a cutaneous branch. The nerves of the axillary region are the intercostobrachial, intercostal T3–T9, long thoracic, and thoracodorsal. The intercostobrachial nerve is the lateral cutaneous branch of the second and third intercostal nerves in 67% and 33% of cases, respectively. It crosses the serratus anterior muscle in the midaxillary line to innervate the axilla. The intercostobrachial nerve is a vital nerve if regional anesthesia of the axilla is required.
The intercostal nerves (T3–T9) provide motor supply to the intercostal muscles and receive sensory information from the skin and parietal pleura. The intercostal nerves have posterior, lateral, and anterior branches and an anterior accessory branch that innervates the sternum. The lateral branches innervate most of the pectoral and axillary regions, together with the posterior hemithorax, back to the scapula. They pierce the external intercostal muscle and exit between the serratus anterior digitations at the level of the midaxillary line. The long thoracic nerve is in the axillary compartment close to the lateral thoracic branch of the thoracoacromial artery and travels down the lateral aspect of the serratus anterior muscle, which it innervates.
Arising from the posterior cord, the thoracodorsal nerve, C6–C8 (nerve to the latissimus dorsi), has a course posteriorly in the axillary compartment, in close relationship with the thoracodorsal artery (Tables 2 through 4). The thoracodorsal nerve becomes prominent when the humerus is abducted and laterally rotated. It is an important and large nerve in danger during reconstructive surgery and other operations involving the lower axilla (see Table 2).
For a more comprehensive review, see Functional Regional Anesthesia Anatomy.
NYSORA‘s COMPENDIUM OF REGIONAL ANESTHESIA
NYSORA's Premium Content
Step-by-step techniques instructions for 60 nerve blocks
Custom illustrations, animations and clinical videos
Community for sharing real-life clinical tips
Access via desktop platform or mobile app
Infographics for exam preparation (e.g. EDRA)
THORACIC WALL NERVE BLOCKS
Pecs I Nerve Block

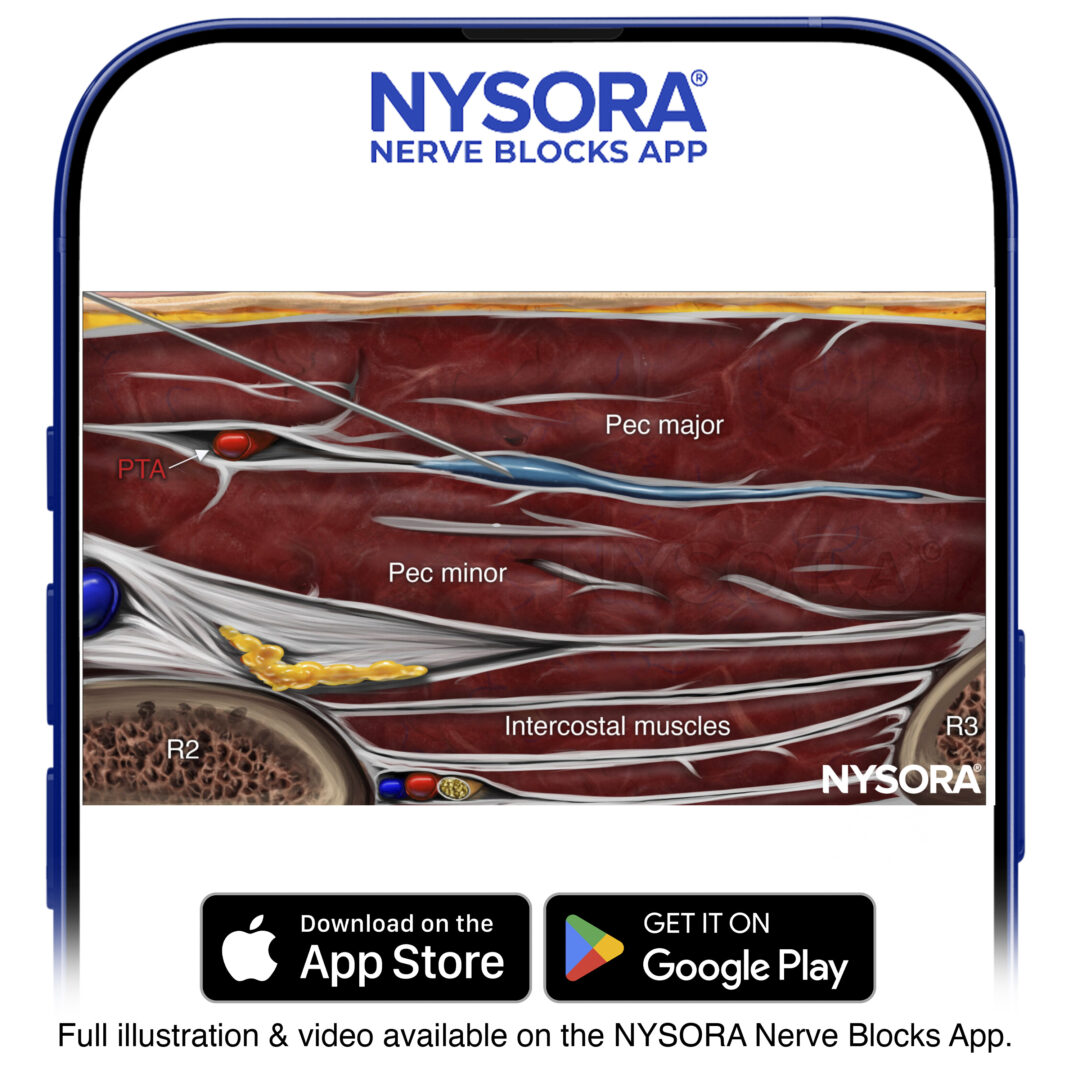

The Pecs I nerve block involves a hydrodissection of the plane between the pectoral muscles with local anesthetic to nerve block the lateral and medial pectoral nerves. The main landmarks to identify the point of injection under US guidance are the pectoralis major and pectoralis minor muscles and the pectoral branch of the thoracoacromial artery. The nerve block is performed with the patient supine, either with the arm next to the chest or abducted 90 degrees. With standard American Society of Anesthesiology (ASA) monitoring and supplemental oxygen, the operator locates the coracoid process on US in the paramedian sagittal plane. The transducer is rotated slightly to allow an in-plane needle trajectory from the proximal and medial side toward the lateral side (ie, the caudal border of the transducer is moved laterally, while the proximal border remains unchanged) (Figure 7). This rotation helps image the pectoral branch of the thoracoacromial artery. The proper fascial plane is confirmed by hydrodissection to open the space between the pectoralis muscles. The suggested volume is 0.2 mL/kg of a long-acting local anesthetic (Figure 8 however, the reader should be informed that dose-ranging studies have not been conducted at the time of publication, and, therefore, there are no evidence-based recommendations currently available.
From the Compendium of Regional Anesthesia: Cognitive priming for a PEC I block.
Pecs II Nerve Block
The goal of the Pecs II nerve block is to infiltrate two fascial compartments by dividing the dose of local anesthetic between the pectoral nerves (the pectoral fascia and clavipectoral fascia) and under the pectoralis minor muscle (between the clavipectoral fascia and the superficial border of the serratus muscle). The local anesthetic should cover two important compartments of the fascias involved: The pectoral compartment with the pectoral nerves and the intercostal branches for the axilla and chest. The nerve block is performed with the patient supine, either with the arm abducted 90 degrees or by his or her side. The first injection is similar to Pecs I, whereas the second is made at the anterior axillary line at the level of the fourth rib. The depth is usually 1–3 cm for the first injection and 3–6 cm for the second injection. With the transducer at the midclavicular level and angled infero-laterally, the axillary artery and vein and the second rib can be identified (Figure 9).
The transducer is then moved laterally until the pectoralis minor and serratus anterior are identified. With further lateral transducer movement, the third and fourth rib can then be identified. The local anesthetic is injected at two points: The first injection of approximately 0.2 mL/kg long-acting local anesthetic is made between the pectoral major and minor muscles, and the second injection of 0.2 mL/kg is made between the pectoralis minor and serratus anterior muscles. Figure 10 illustrates the sonographic anatomy, needle trajectory, and the desired spread of injectate.
From the Compendium of Regional Anesthesia: Cognitive priming for a PEC II block.
Serratus Anterior Plane Nerve Block
The serratus plane nerve block is performed in the axillary region, at a more lateral and posterior location than the Pecs I and II nerve blocks. At the axillary fossa, the intercostobrachial nerve, lateral cutaneous branches of the intercostal nerves (T3–T9), long thoracic nerve, and thoracodorsal nerve are located in a compartment between the serratus anterior and the latissimus dorsi muscles, between the posterior and midaxillary lines.
The two main anatomical landmarks are the latissimus dorsi and the serratus anterior muscles. The thoracodorsal artery runs in the fascial plane between the two. The ribs, pleura, and intercostal muscles can also be seen during the procedure. Lying on the side or supine with the arm brought forward is the preferable patient position. There are two main methods for identifying the plane for the serratus nerve block. The first method requires counting the ribs from the clavicle while moving the transducer laterally and distally until the fourth and fifth ribs are identified (Figure 10). The transducer is orientated in the coronal plane and then tilted posteriorly until the latissimus dorsi (a superficial thick muscle) is identified (Figure 11). The serratus muscle, a thick, hypoechoic muscle deep to the latissimus dorsi is imaged over the ribs. Translating the transducer posteriorly facilitates the identification of the plane between the serratus anterior and latissimus dorsi muscles. An alternative method is to place the transducer across the axilla, where the latissimus dorsi will appear more prominent (Figure 12). The location of the thoracodorsal artery is easier to identify this way. Both in-plane and out-of-plane approaches are appropriate. Following the identification of sonographic landmarks, regional anesthesia can be achieved using a 38-mm, 6–13-MHz, linear transducer set for small parts and a depth of 1–4 cm; a 50–100-mm, 22-gauge regional nerve block needle; and an injectate of 0.4 mL/kg of long-acting local anesthetic.
From the Compendium of Regional Anesthesia: Cognitive priming for a serratus anterior plane block.
THE ANALGESIC POTENTIAL OF PECS NERVE BLOCKS
A summary of published studies is given in Table 1. At the time of writing, there were two randomized controlled trials (180 patients), five case reports (6 patients), and one volunteer study (4 patients, 8 hemithoraces). Bashandy and Abbas reported lower visual analog scale pain scores and opioid requirements in the Pecs group compared to a control group of patients following mastectomy. In this study, there was an inadequate description of allocation concealment and blinding of operating room personnel. Wahba and Kamal compared Pecs nerve blocks to paravertebral nerve blocks in 60 patients undergoing mastectomy. They found that Pecs nerve blocks reduced postoperative morphine consumption (in the first 24 hours) and pain scores (in the first 12 hours) in comparison with paravertebral block following mastectomy. Pecs nerve blocks have also been used for the insertion of a cardiac resynchronization device. The few remaining reports describe the utility of serratus plane nerve blocks for analgesia following rib fracture and thoracotomy.
Pecs and serratus plane nerve blocks are newer US-guided nerve blocks for analgesia after breast and lateral thoracic wall surgery. The key sonographic landmarks are the pectoralis major, pectoralis minor, and serratus anterior muscles and the pectoral branch of the acromiothoracic artery. As there are currently few reports on the utility of these US-guided interventional analgesia modalities, data from the imminent randomized controlled trials will be necessary to establish the analgesic benefit, indications, and safety of the Pecs and serratus plane nerve blocks.
This text was a sample of content from the Compendium of Regional Anesthesia on the NYSORA LMS.
NYSORA’s Compendium of Regional Anesthesia is simply the most comprehensive, and practical curriculum on Regional Anesthesia from A to Z, featuring NYSORA’s Premium content. As opposed to textbooks and e-books, the Compendium is continuously updated and features NYSORA’s newest videos, animations, and visual content.
The Compendium is one of several gold-standard educational courses on NYSORA’s Learning System (the NYSORA LMS), and registration to NYSORALMS.com is free. The FULL access to the Compendium, however, is based on an annual subscription, as it requires an army of illustrators, video editors, and an educational team to continue making it the BEST tool for education on everything regional anesthesia. While you can think of the compendium as an ebook on steroids, a quick test drive will give you a real-time feel of how incredible the Compendium really is. Your subscription will transform the way you read about regional anesthesia:
- Learn visually: Everything regional, including spinal, epidural, and nerve block procedures and management protocols
- Review step-by-step techniques instructions for over 60 nerve blocks
- Access NYSORA’s fabled illustrations, animations, and videos (such as Reverse Ultrasound Anatomy)
- Access RA info on any device via the desktop platform and mobile app
- Get real-time updates
- Review infographics for exam preparation (e.g. EDRA)
- Use the Community feed with real case discussions, images and videos are posted and discussed by subscribers and world’s top experts alike.
Even if you do not wish to subscribe to the Compendium, do register to the NYSORA LMS, be the first to know what’s new in regional anesthesia, and get involved in case discussions.
Here’s what the activity feed on NYSORA LMS looks like:
We are convinced that once you experience the Compendium on the NYSORA LMS, and you’ll never go back to your old books, and your subscription will support keeping NYSORA.com free for the rest of the world.
- Blanco R: The “pecs nerve block”: a novel technique for providing analgesia after
breast surgery. Anaesthesia 2011;66:847–848.
- Blanco R, Fajardo M, Parras Maldonado T: Ultrasound description of Pecs II (modified Pecs I): a novel approach to breast surgery. Rev Esp Anestesiol Reanim 2012;59:470–475.
- Blanco R, Parras T, McDonnell JG, Prats-Galino A: Serratus plane nerve block: a novel ultrasound-guided thoracic wall nerve block. Anaesthesia 2013;68:1107–1113.
- Womack J, Varma MK: Serratus plane nerve block for shoulder surgery. Anaesthesia 2014;69:395–396.
- Purcell N, Wu D: Novel use of the PECS II nerve block for upper limb fistula surgery. Anaesthesia 2014;69:1294.
- Fujiwara A, Komasawa N, Minami T: Pectoral nerves (PECS) and intercostal nerve block for cardiac resynchronization therapy device implantation. Springerplus 2014;3:409.
- Eid M, Nassr M, Aziz A: Serratus anterior plane nerve block for flail chest injury. Anaesthesia Cases June 18, 2014, 2014-0074.
- Kunhabdulla NP, Agarwal A, Gaur A, Gautam SK, Gupta R, Agarwal A: Serratus anterior plane nerve block for multiple rib fractures. Pain Physician 2014;17:E651–653.
- Kiss G, Castillo M: Non-intubated anesthesia in thoracic surgerytechnical issues. Ann Transl Med 2015;3:109.
- Fujiwara S, Komasawa N, Minami T: Pectoral nerve blocks and serratusintercostal plane nerve block for intractable post thoracotomy syndrome. J Clin Anesth 2015;27:275–276.
- Madabushi R, Tewari S, Gautam SK, Agarwal A, Agarwal A: Serratus anterior plane nerve block: a new analgesic technique for post-thoracotomy pain. Pain Physician 2015;18:E421–424.
- Bashandy GM, Abbas DN: Pectoral nerves I and II nerve blocks in multimodal analgesia for breast cancer surgery: a randomized clinical trial. Reg Anesth Pain Med 2015;40:68–74.
- Wahba SS, Kamal SM: Thoracic paravertebral nerve block versus pectoral nerve block for analgesia after breast surgery. Egyptian J Anaesth 2014; 30:129–135.
