Ultrasound-Guided Wrist Block

Ine Leunen, Sofie Louage, Hassanin Jalil, and Xavier Sala-Blanch


  • Indications: hand and finger surgery
  • Transducer position: transverse at wrist crease or distal third of the forearm (Figure 32G–1)
  • Goal: local anesthetic injection next to the median and ulnar nerves and the sensory branch of the radial nerve
  • Local anesthetic: 10–15 mL (total volume)


The wrist block is an effective method to provide anesthesia of the hand and fingers without the arm immobility that occurs with more proximal brachial plexus blocks. Traditional wrist block technique involves advancing needles using surface landmarks toward the three nerves that supply the hand: the median, ulnar, and radial nerves. Since the nerves are located relatively close to the surface, this is a technically easy block to perform, but knowledge of the anatomy of the soft tissues of the wrist is essential for successful blockade with minimum patient discomfort. In addition to providing anesthesia and analgesia, wrist blocks using botulinum toxin to treat hyperhidrosis have been described.1


Three individual nerves are involved in a wrist block: the median, ulnar, and radial nerves.

The Median Nerve

The median nerve crosses the elbow medial to the brachial artery and courses toward the wrist deep to the flexor digitorum superficialis in the center of the forearm. As the muscles taper toward tendons near the wrist, the nerve assumes an increasingly superficial position until it is located beneath the flexor retinaculum in the carpal tunnel with the tendons of the flexor digitorum profundus, flexor digitorum superficialis, and flexor pollicis longus. A linear transducer placed transversely at the level of the wrist crease will reveal a cluster of oval hyperechoic structures, one of which is the median nerve.
At this location, it is easy to confuse the tendons for the nerve and vice versa; for this reason, it is recommended to slide the transducer 5–10 cm proximally the volar side of the forearm, to confirm the location of the nerve. The tendons will have disappeared on the image, leaving just muscle and the solitary median nerve (Figures 32G-2 and 32G-3), which then can be carefully traced back to the wrist, if desired. In many instances, however, it is much simpler to perform a median nerve block at the midforearm, where the nerve is easier to recognize.

Clinical Pearls

• The median nerve exhibits pronounced anisotropy. Tilting the transducer slightly will make the nerve appear alternately brighter (more contrast) or darker (less contrast) with respect to the background.

The Ulnar Nerve

The ulnar nerve is located medially (ulnar side) to the ulnar artery from the level of the midforearm to the wrist; this provides a useful landmark. A linear transducer placed at the level of the wrist crease will show the hyperechoic anterior surface of the ulna with shadowing behind; just lateral to the bone and very superficial will be the triangular or oval hyperechoic ulnar nerve, with the pulsating ulnar artery immediately next to it

FIGURE 32G–1. Ultrasound-guided wrist block. Transducer and needle positions for (A) median nerve block; (B) ulnar nerve block; (C) radial nerve block.

(Figures 32G–4 and 32G–5). At this location, the tendon of the flexor carpis ulnaris muscle can be seen superficial to the ulnar nerve. Scanning proximally, these two structures can be

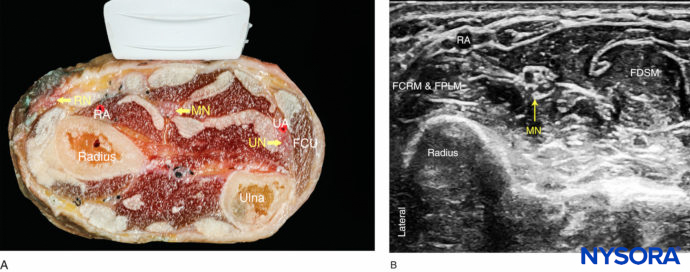

FIGURE 32G–2. (A) Cross-sectional anatomy of the distal forearm. (B) Sonoanatomy of the median nerve (MN) at the forearm. RA, radial artery; FCRM, flexor carpi radialis muscle; FPLM, flexor pollicis
longus muscle; FDSM, flexor digitorum superficialis muscle.

easily differentiated. Sliding the transducer up and down the forearm helps verify that the structure is the ulnar nerve by following the course of the ulnar artery and looking for the nerve on its ulnar side.

The Radial Nerve

The superficial branch of the radial nerve divides into terminal branches at the level of the wrist; for this reason, ultrasonography is not very useful for block placement guidance at the level of the wrist. A subcutaneous field block around the area of the
styloid process of the radius remains an easy method to perform an effective radial nerve block at the level of the wrist. However, ultrasonography can be used at the level of the elbow or in the midforearm. At this level, the nerve is identified as a thin hyperechoic structure lateral to the radial artery and superficial to the radius. The nerve exits the antebrachial fascia between the tendons of the brachioradialis and the extensor carpi radialis muscles (Figures 32–6 and 32–7).

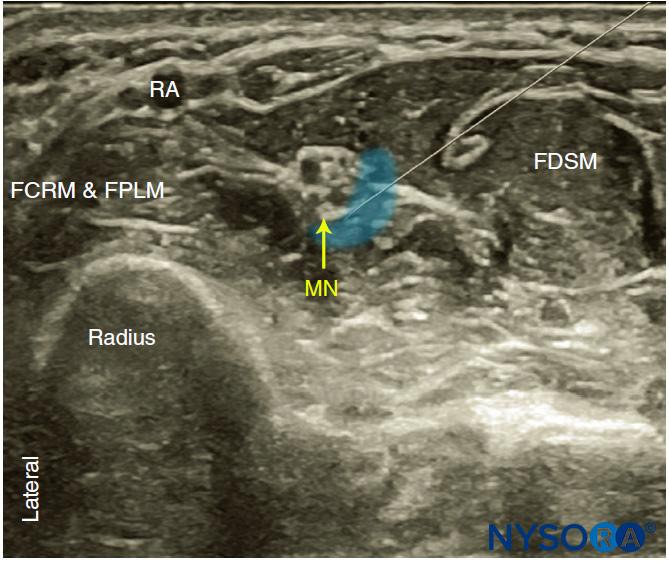

FIGURE 32G–3. Cross-sectional ultrasound image of the median nerve (MN) at the wrist. Needle path to reach the MN at the wrist and spread of local anesthetic to block the MN.
FIGURE 32G–4. (A) Cross-sectional anatomy of the distal forearm. (B) Sonoanatomy of the ulnar nerve (UN) at the forearm. UA, ulnar artery; FCUM, Flexor carpi ulnaris. FDPM, flexor digitorum profundus muscle; FDSM, flexor digitorum superficialis muscle.

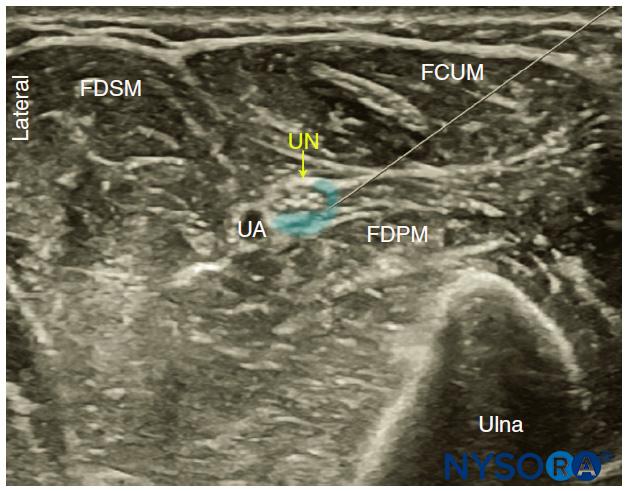

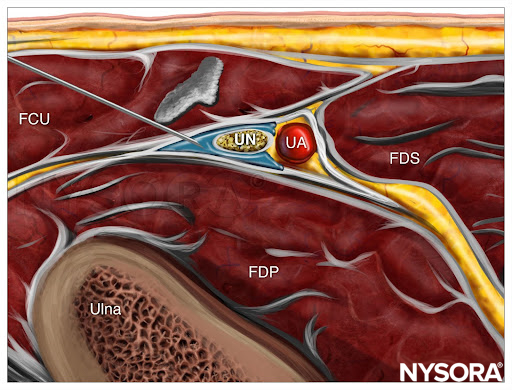

FIGURE 32G–5. Sonoanatomy of the ulnar nerve (UN) at the wrist: needle path to reach the UN at the wrist and approximate spread of local anesthetic (blue-shaded area) to anesthetize the UN. UA, ulnar artery.

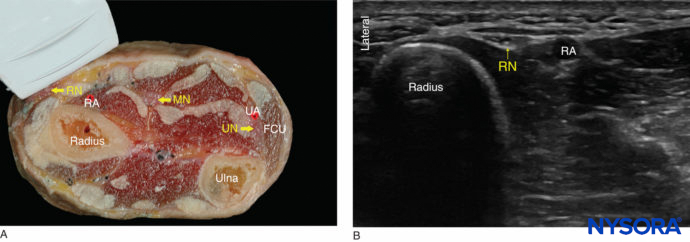

FIGURE 32G–6. (A) Cross-sectional anatomy of the distal forearm. (B) Sonoanatomy of the radial nerve (RN) at the forearm. RA, radial artery.


A wrist block results in anesthesia of the entire hand, except the territory of the deep branch of the radial nerve. For a more comprehensive review of the distribution of each terminal nerve, see Chapter 3.

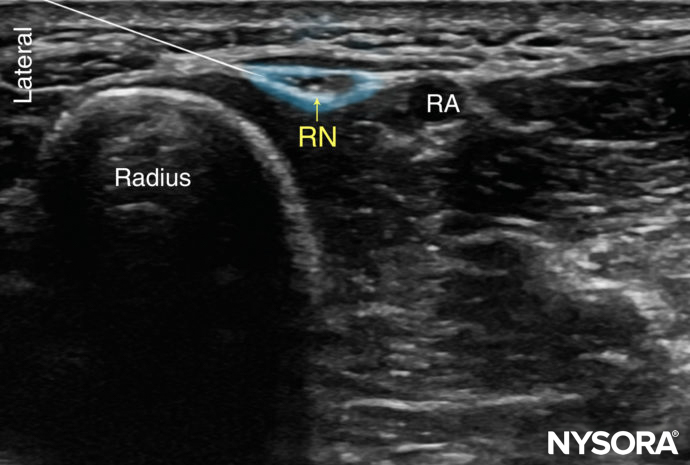

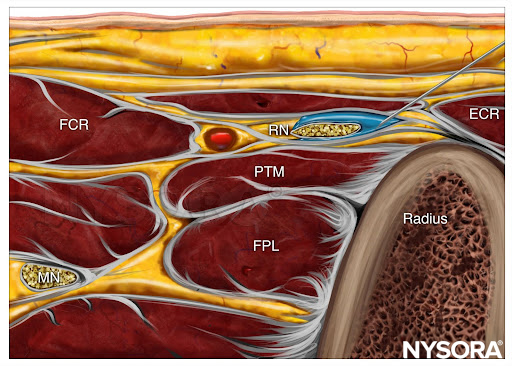

FIGURE 32G–7. Sonoanatomy of the radial nerve (RN) at the level of the wrist. The superficial branch of the RN at the wrist is shown lateral to the radial artery (RA), and the approximate needle path to reach the branch of the radial nerve is shown with an approximate spread of local anesthetic (blue-shaded area) to anesthetize it.


The equipment needed for a wrist block includes the following:
• Ultrasound machine with linear transducer (8–14 MHz), sterile sleeve, and gel
• Standard nerve block tray
• 5 mL syringes containing local anesthetic
• A 2-3 mm 22- to 25-gauge needle with low-volume extension tubing
• Sterile gloves


The wrist block is most easily performed with the patient in the supine position to allow for the volar surface of the wrist to be exposed (Figure 32G-1). It is useful to remove splints and/or bandages on the hand to facilitate placement of the transducer
and sterile preparation of the skin surface.


The goal of this block is to place the needle tip immediately adjacent to each of the nerves to deposit local anesthetic until its spread around the nerve is documented with ultrasound visualization.


With the arm in the volar side up position, the skin is disinfected. The wrist is a “tightly packed” area that is bounded on three sides by bones. For this reason, a US-guided “wrist” block is often performed 5–10 cm proximally to the wrist crease, where there is more room to maneuver. This location also ensures the blockade of the palmar branches of the median and ulnar nerves, which take off few centimeters proximaly to the wrist crease. For each of the blocks, the needle may be inserted either in plane or out of plane. Ergonomics often dictates which is most effective. Care must be taken when performing the ulnar and radial nerve blocks since these nerves are intimately associated with arteries. Inadvertent arterial puncture can lead to hematoma. Successful block is predicted by the spread of local anesthetic immediately adjacent to the nerve. Multiple injections to achieve circumferential spread are usually not necessary because these nerves are small and the local anesthetic diffuses quickly into the neural tissue due to the lack of thick epineural tissues. Assuming deposition immediately adjacent to the nerve, 3–4 mL/nerve of local anesthetic is sufficient to ensure an effective block.


Bajaj S, Pattamapaspong N, Middleton W, Teefey S: Ultrasound of the hand and wrist. J   Hand Surg Am 2009;34:759–760.
Heinemeyer O, Reimers CD: Ultrasound of radial, ulnar, median and sciatic nerves in   healthy subjects and patients with hereditary motor and sensory neuropathies.   Ultrasound Med Biol 1999:25:481–485.
Kiely PD, O’Farrell D, Riordan J, Harmon D: The use of ultrasound-guided hematoma blocks in wrist fractures. J Clin Anesth 2009;21:540–542.
Liebmann O, Price D, Mills C, et al: Feasibility of forearm ultrasonographyguided
nerve blocks of the radial, ulnar, and median nerves for hand procedures in the emergency department. Ann Emerg Med 2006;48:558–562.
Macaire P, Singelyn F, Narchi P, Paqueron X: Ultrasound- or nerve stimulationguided
wrist blocks for carpal tunnel release: a randomized prospective comparative study. Reg Anesth Pain Med 2008;33:363–368.
McCartney CJL, Xu D, Constantinescu C, et al: Ultrasound examination of peripheral nerves in the forearm. Reg Anesth Pain Med 2007;32:434–439.


  1. Olea E, Fondarella A, Sánchez C, Iriarte I, Almeida MV, Martínez de Salinas A: Bloqueo de los nervios periféricos a nivel de la muñeca guiado por ecografía para el tratamiento de la hiperhidrosis idiopática palmar con toxina botulínica [Ultrasound-guided peripheral nerve block at wrist level for the treatment of idiopathic palmar hyperhidrosis with botulinum toxin]. Rev Esp Anestesiol Reanim 2013;60:571–575.
