Hesham Elsharkawy and Thomas F. Bendtsen

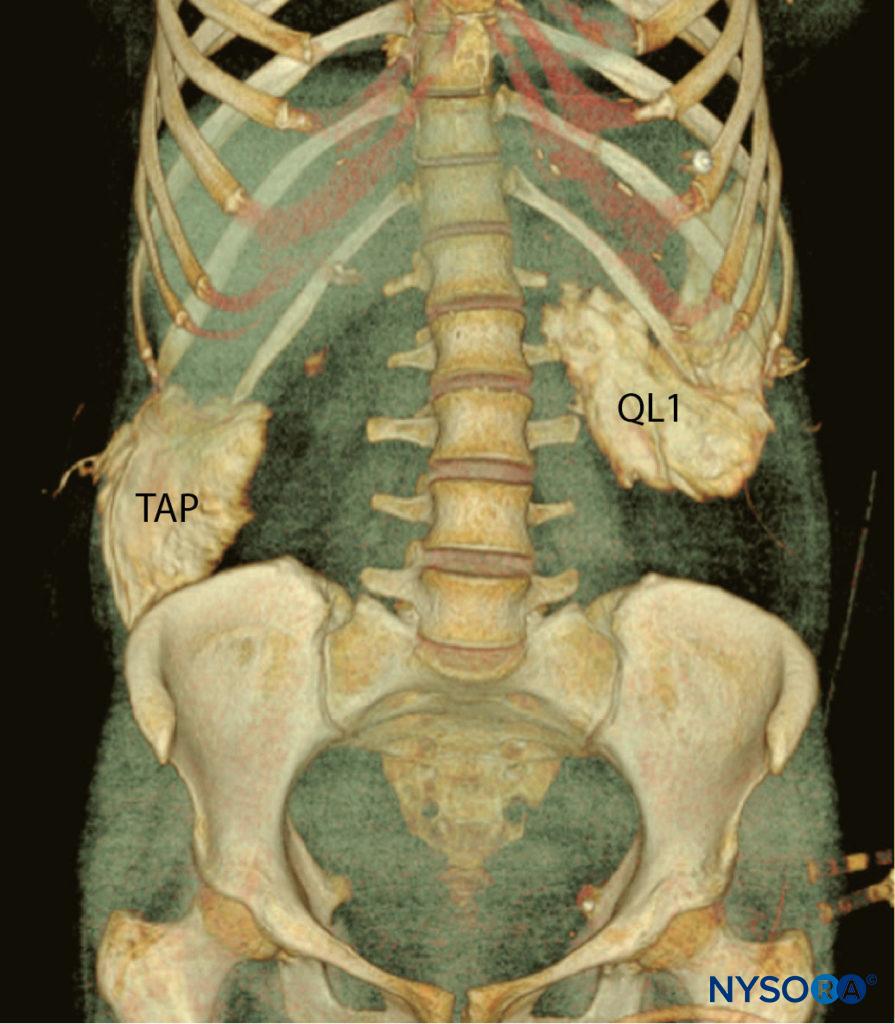

Ultrasound-guided transversus abdominis plane (TAP) nerve block has become a common analgesic method after surgery involving the abdominal wall. Because TAP blockade is limited to somatic anesthesia of the abdominal wall and highly dependent on interfascial spread, various newer techniques have been proposed to enhance analgesia, either in addition to TAP nerve block or as a single modality. In particular, variants of quadratus lumborum nerve blocks (QLBs) have been proposed as more consistent methods with an aim to accomplish somatic as well as visceral analgesia of the abdomen. The present evidence, mainly case reports, suggests that different variants of QLB have different analgesic effects and mechanisms of action, although this has not been formally validated. In particular, transmuscular QLB and the so-called QLB2 may result in wider and longer sensory blockade compared to TAP nerve block (T4–L1 for QL nerve block vs. T6–T12 for the TAP nerve blocks) (Figures 1 and 2). This chapter focuses on underlying principles for TAP blockade and the newer QLB techniques, with an understanding that the information about the latter is based on sparse evidence of limited quality as outcome-based studies are not yet available.
The transversus abdominis plane is the fascial plane superficial to the transversus abdominis muscle, the innermost muscular layer of the anterolateral abdominal wall. The upper fibrous anterior part of the muscle lies posterior to the rectus abdominis muscle and reaches the xiphoid process. The posterior aponeuroses of the transversus abdominis and internal oblique muscles fuse and attach to the thoracolumbar fascia (TLF). In the TAP, the intercostal, subcostal, and L1 segmental nerves communicate to form the upper and lower TAP plexuses, which innervate the anterolateral abdominal wall, including the parietal peritoneum. Therefore, TAP blockade requires anesthesia of the upper (also known as the subcostal or intercostal) TAP plexus, as well as the lower TAP plexus, located in the vicinity of the deep circumflex iliac artery.
The subcostal approach to the TAP nerve block ideally anesthetizes the intercostal nerves T6–T9 between the rectus abdominis sheath and the transversus abdominis muscle. The lateral TAP nerve block in the midaxillary line between the thoracic cage and iliac crest as well as between the internal oblique and transversus abdominis muscles ideally should reach intercostal nerves T10– T11 and the subcostal nerve T12. Of note, the umbilicus is innervated by intercostal nerve T10. The L1 segmental nerves in the TAP are not covered by the lateral TAP nerve block and require an anterior TAP nerve block medial to the anterior superior iliac spine. A posterior approach to nerve block the TAP plexuses via the triangle of Petit has also been described. TAP nerve blocks provide somatic analgesia of the abdominal wall including the parietal peritoneum.
The quadratus lumborum (QL) muscle lies in the posterior abdominal wall dorsolateral to the psoas major muscle (Figure 3). The QL muscle originates from the posterior part of the iliac crest and the iliolumbar ligament and inserts on the 12th rib and the transverse processes of vertebrae L1–L5. The QL muscle assists in lateral flexion of the lumbar spine.

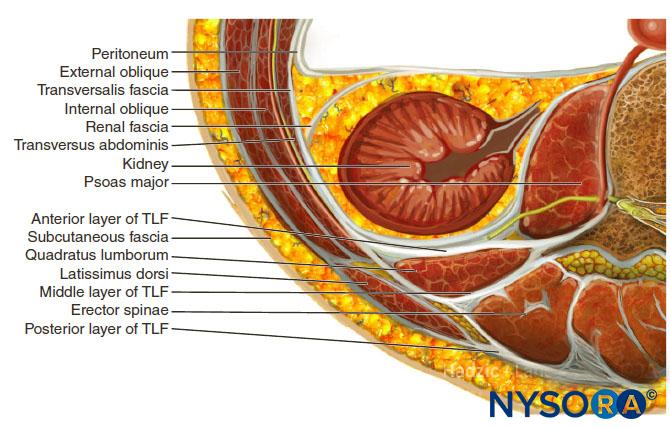

The thoracolumbar fascia consists of anterior, middle, and posterior layers (Figure 4). The posterior layer of the TLF forms an attachment to the strong membranous aponeurosis of the latissimus dorsi. The three layers of the TLF are continuous with the fused posterior aponeurosis of the internal oblique and transversus abdominis muscles.
The posterior layer of the TLF covers the superficial side of the erector spinae. In the lumbar region, the posterior layer extends from the spinous processes medially to the lateral margin of the erector spinae, where it fuses with the middle layer of the TLF and forms the so-called lateral raphe, which is a dense connective pillar that extends from the iliac crest to the 12th rib. The deepest lamina of the posterior layer is called the paraspinal retinacular sheath (PRS), which encapsulates the erector spinae muscles. The lateral interfascial triangle (LIFT)s is made by the lateral margin of the erector spinae muscle (base), the PRS with overlying posterior and middle layers of the TLF (sides), and the lateral raphe (apex). The middle layer of the TLF separates the QL and erector spinae muscles. The anterior layer of the TLF covers the anterior aspect of the QL muscle.
The transversalis fascia (TF) invests the parietal subperitoneal areolar tissue in the abdominal cavity. The outer surface of the TF lines the deep side of the transversus abdominis, QL, and psoas major muscles. The TF communicates with the endothoracic fascia posterior to the diaphragm where the TF is thickened as the medial and lateral arcuate ligaments, with possibility of the spread of injectate from the QL and psoas major muscle compartments to the thoracic paravertebral space (Figure 5). Consequently, when the local anesthetic is injected into the fascial plane between these muscles in the lumbar region, it could spread cranially to the thoracic paravertebral space. The anterior layer of the TLF is fused with the TF. The iliohypogastric, ilioinguinal, and subcostal nerves that cross the QL muscle lie between this muscle and the TF. The four lumbar arteries on each side pass posterior to the psoas major and QL muscles, pierce the aponeurosis of the transversus abdominis muscle, and end up inside the TAP (Figure 6).
The lower pole of the kidney lies anterior to the QL muscle and can reach the L4 level with deep inspiration. Therefore, this should be checked when performing QL nerve block as the kidney may be separated from the QL muscle only by perinephric fat, the posterior layer of renal fascia, the TF, and the anterior layer of the TLF. In summary, the kidney should always be visualized with QL nerve blocks to avoid kidney injury.
PATIENT POSITIONING AND EQUIPMENT SELECTION
For QL nerve blocks, the lateral decubitus position is preferred over the supine position as it provides better ergonomics and relevant sono-images of the neuraxial structures. A low-frequency (5- to 2-MHz) curved array ultrasound transducer in transverse axis is preferred to visualize the three lateral abdominal wall muscle layers and the QL muscle.
A 22-gauge, short-bevel needle is recommended for the single-injection technique, whereas an 18- to 21-gauge, 10-cm Tuohy needle with extension tubing is used for catheters. A peripheral nerve stimulator may be useful as a warning sign to prevent further needle advancement should the needle be mistakenly placed too deep and next to the lumbar plexus.
Learn more about Equipment for Peripheral Nerve Blocks
SCANNING AND NERVE BLOCK TECHNIQUES
Subcostal TAP Nerve Block
A linear transducer is placed alongside the lower margin of the rib cage as medial and cranial as possible for the subcostal TAP nerve block (Figure 7a). The rectus abdominis muscle and its posterior rectus sheath are visualized along with the transversus abdominis muscle deep to the posterior rectus sheath.
The target is the fascial plane between the posterior rectus sheath and the transversus abdominis muscle. The needle is inserted above the rectus abdominis close to the midline and advanced from medial to lateral (alternatively, lateral to medial). The endpoint of injection is the spread of local anesthetic between the posterior rectus sheath and the anterior margin of the transversus abdominis muscle. Follow the link to Truncal and Cutaneous Nerve Blocks to learn about how to perform a rectus sheath nerve block.
Lateral TAP Nerve Block
For the lateral TAP nerve block, a linear transducer is placed in the axial plane on the midaxillary line between the subcostal margin and the iliac crest (Figure 7b). The three layers of abdominal wall muscles are visualized: external and internal oblique as well as the transversus abdominis muscles. The target is the fascial plane between the internal oblique and the transversus abdominis muscles. The needle is inserted in the anterior axillary line, and the needle tip is advanced until it reaches the fascial plane between the internal oblique and transversus abdominis muscles approximately in the midaxillary line.
Anterior TAP Nerve Block
A linear transducer is placed medial to the anterior superior iliac spine pointing toward the umbilicus with a caudad tilt for the anterior TAP nerve block (Figure 7c). The three abdominal wall muscles are visualized (see discussion for the lateral TAP nerve block). The target is the same fascial plane at the level of the deep circumflex iliac artery. The needle is inserted medial to the anterior superior iliac spine. The needle tip is advanced until it is placed between the internal oblique and transversus abdominis muscles adjacent to the deep circumflex iliac artery.
Posterior TAP Nerve Block
For the posterior TAP nerve block, the linear transducer is placed in the axial plane in the midaxillary line and moved posteriorly to the most posterior limit of the TAP between the internal oblique and transversus abdominis muscles (Figure 7d). The target is the most posterior end of the TAP. The needle is inserted in the midaxillary line and advanced posteriorly until it reaches the posterior end of the TAP.
Transmuscular QL Nerve Block

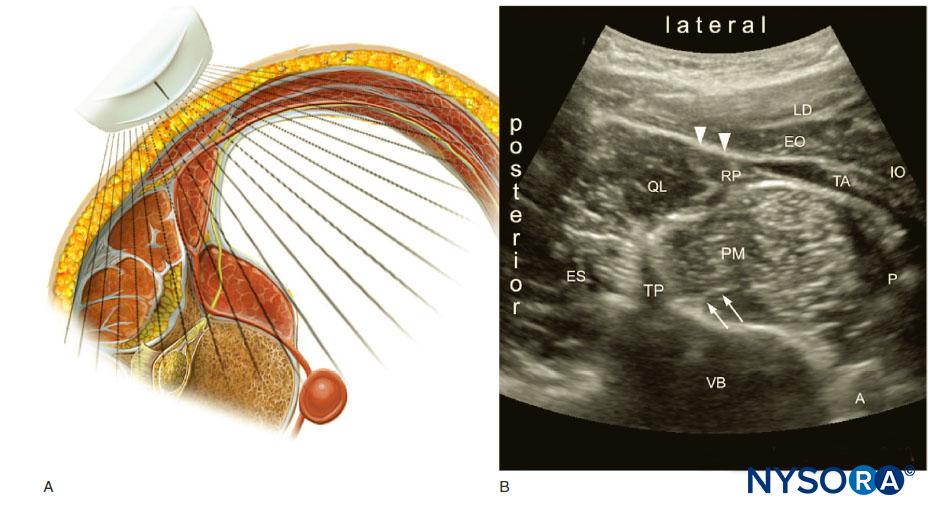

A curved array transducer for the transmuscular QL (TQL) nerve block is placed in the axial plane on the patient’s flank just cranial to the iliac crest. The “shamrock sign” is visualized: The transverse process of vertebra L4 is the stem, whereas the erector spinae posteriorly, QL laterally, and psoas major anteriorly represent the three leaves of the trefoil. The target for injection is the fascial plane between the QL and psoas major muscles (Figure 8). The needle is inserted using an in-plane technique from the posterior end of the transducer through the QL muscle (Figure 9). The injectate should ideally spread from the injection site inside the fascial plane between the QL and psoas major muscles to the thoracic paravertebral space with a goal to accomplish segmental somatic and visceral analgesia from T4 to L1. The needle approaches of the QLBs are shown in Figure 10.
Type 1 QL Nerve Block
For the type 1 QL (QL1) nerve block, a linear transducer is placed in the axial plane in the midaxillary line and moved posteriorly until the posterior aponeurosis of the transversus abdominis muscle becomes visible as a strong specular reflector. The target is just deep to the aponeurosis but superficial to the TF at the lateral margin of the QL muscle. This is just lateral to the pararenal fat compartment. The QL1 nerve block is identical to the fascia transversalis plane nerve block. The needle is inserted from either the anterior or the posterior end of the transducer and advanced until the needle tip just penetrates the posterior aponeurosis of the transversus abdominis muscle. Local anesthetic is injected between the aponeurosis and the TF at the lateral margin of the QL muscle. The main effect is anesthesia of the lateral cutaneous branches of the iliohypogastric, ilioinguinal, and subcostal nerves (T12–L1).
Type 2 QL Nerve Block
In the type 2 QL (QL2) nerve block, a linear transducer is placed in the axial plane in the midaxillary line and moved posteriorly as in the QL1 nerve block, until the LIFT, which encapsulates the paraspinal muscles, becomes visible between the latissimus dorsi and QL muscles.
The target is the deep layer (the PRS) of the middle layer of the TLF. The needle is inserted from the lateral end of the transducer. The needle tip is advanced until it is inside the middle layer of the TLF close to the LIFT. The local anesthetic is injected intrafascially and apparently provides analgesia equivalent to TQL nerve block but with faster onset. The mechanism of action is not well understood.
DOSE AND VOLUME OF LOCAL ANESTHETIC
The TAP nerve blocks as well as the TQL nerve block and QLB1 are “tissue plane” nerve blocks and thus require large volumes of local anesthetic to obtain reliable blockade. For each of the TAP nerve blocks, a minimum volume of 15 mL is recommended. The local anesthetic dose needs to be considered for the size of the patient to ensure that a maximum safe dose is not exceeded, especially with dual bilateral TAP nerve blocks. The QL region is relatively vascular as the lumbar arteries lie posterior to the muscle. Absorption of the local anesthetic into the circulation depends primarily on the vascularity of the site of deposition. As the QL muscle is well vascularized and a large volume of local anesthetic is needed, the dose should be calculated accurately to prevent high peak plasma concentrations of local anesthetics in this type of nerve block.
For additional information follow the link to Clinical Pharmacology of Local Anesthetics
Most of the indications for QL nerve blocks are based on case reports and clinical anecdotal experience. There are no studies comparing the safety and efficacy of the three types of QL nerve block. Table 1 compares and summarizes the three types of QL nerve blocks.
TABLE 1.Main features of QL nerve blocks.
|Clinical indications||Abdominal surgery below the umbilicus.||Abdominal surgery either above or below the umbilicus (any type of operation that requires intra-abdominal visceral pain coverage and abdominal wall incisions as high as T6)||Abdominal surgery either above or below the umbilicus (any type of operation that requires intra-abdominal visceral pain coverage and abdominal wall incisions as high as T6)|
|Dermatomes covered||L1||T4 to T12-L1; blocks the anterior and the lateral cutaneous branches of the nerves||T4 to T12-L1; blocks the anterior and the lateral cutaneous branches of the nerves|
|Lower extremity weakness||Not reported||Not reported||Potential|
|Spread to lumbar plexus||Not reported||Not reported||Potential|
|Needle entry and approach||Lateral abdomen near the posterior axillary line, below the costal margin and above the iliac crest and inserting the needle inplane with the curved array probe oriented axially.||Lateral abdomen near the posterior axillary line, below the costal margin and above the iliac crest and inserting the needle inplane with the curved array probe oriented axially.||Lateral abdomen near the posterior axillary line, below the costal margin and above the iliac crest and inserting the needle inplane with the curved array probe oriented axially.|
|Potential complications||Complications are related to the lack of anatomical understanding and needle expertise. It is possible to puncture intra-abdominal structures such as the kidney, liver, and spleen.||Complications are related to the lack of anatomical understanding and needle expertise. It is possible to puncture intra-abdominal structures such as the kidney, liver, and spleen.||Complications are related to the lack of anatomical understanding and needle expertise. It is possible to puncture intra-abdominal structures such as the kidney, liver, and spleen.|
|Injection site||Potential space medial to the abdominal wall muscles and lateral to QL muscle, anterolateral border of the QL muscle, at the junction with the transversalis fascia, outside the anterior layer of the TLF and fascia transversalis||Posterior to the QL muscle, outside the middle layer of the TLF||Anterior to the QL muscle, between the QL and the psoas major muscles, outside the anterior layer of the TLF and fascia transversalis, close to the intervertebral foramen|
|Level of difficulty||Intermediate||Intermediate||Advanced|
The various QL nerve blocks share the same indications as of the TAP nerve block. Some examples are as follows:
- Large-bowel resection, open/laparoscopic appendectomy, and cholecystectomy
- Cesarean section, total abdominal hysterectomy
- Open prostatectomy, renal transplant surgery, nephrectomy, abdominoplasty, iliac crest bone graft
- Exploratory laparotomy, bilateral nerve blocks for midline incisions
• Close to the transverse process, the QL muscle appears thin as it is visualized anterior-posterior; visualized from the flank, the muscle looks much broader.
• Use color Doppler before insertion of the needle to detect the lumbar arteries on the posterior aspect of the QL muscle or any other large vessels.
• The QL is identified medial to the transversus abdominis muscle. The latissimus dorsi and erector spinae muscles are superficial and more hyperechoic.
The various TAP nerve blocks can provide somatic analgesia for abdominal wall surgery. QL nerve blocks can provide somatic as well as visceral analgesia of both the abdominal wall and the lower segments of the thoracic wall and therefore could be a useful analgesic modality for selected abdominal surgeries. QL nerve blocks may provide visceral analgesia due to their paravertebral and possibly epidural spread. The information in this chapter is based on the current knowledge, with an understanding that more specific recommendations are pending a stronger evidence base.
- Carney J, Finnerty O, Rauf J, et al: Studies on the spread of local anaesthetic solution in transversus abdominis plane nerve blocks. Anaesthesia 2011;66:1023–1030.
- Elsharkawy H: Quadratus lumborum nerve block with paramedian sagittal oblique (subcostal) approach. Anaesthesia 2016;71:241–242.
- Skandalakis JE, Colborn GL, Weidman TA, et al: Skandalakis Surgical Anatomy: The Embryologic and Anatomic Basis of Modern Surgery. Paschalidis Medical, 2004.
- Willard FH, Vleeming A, Schuenke MD, Danneels L, Schleip R: The thoracolumbar fascia: Anatomy, function and clinical considerations. J Anat 2012;221:507–536.
- Karmakar MK, Gin T, Ho AMH. Ipsilateral thoracolumbar anaesthesia and paravertebral spread after low thoracic paravertebral injection. Br J Anaesth 2001;87:312–316.
- Børglum J, Jensen K, Moriggl B, et al: Ultrasound-guided transmuscular quadratus lumborum blockade. Br J Anesth 2013.
- Hebbard PD: Transversalis fascia plane nerve block, a novel ultrasound-guided abdominal wall nerve block. Can J Anaesth 2009;56:618–620.
- Mcdonnell JG, Curley G, Carney J, et al: The analgesic efficacy of transversus abdominis plane block after caesarean delivery: A randomized controlled trial. Anesth Analg 2008;106:186–191.
- Carney JJ, Mcdonnell JG, Ochana A, Bhinder R, Laffey JG: The transversus abdominis plane nerve block provides effective postoperative analgesia in patients undergoing total abdominal hysterectomy. Anesth Analg 2008;107:2056–2060.
- Kadam VR: Ultrasound-guided quadratus lumborum nerve block as a postoperative analgesic technique for laparotomy. J Anaesthesiol Clin Pharmacol 2013;29:550–552.
- Visoiu M, Yakovleva N: Continuous postoperative analgesia via quadratus lumborum nerve block—An alternative to transversus abdominis plane nerve block. Paediatr Anaesth 2013;23:959–961.
- Chakraborty A, Goswami J, Patro V: Ultrasound-guided continuous quadratus lumborum block for postoperative analgesia in a pediatric patient. A A Case Rep 2015;4:34–36.
- Blanco R, Ansari T, Girgis E. Quadratus lumborum nerve block for postoperative pain after caesarean section: a randomised controlleds trial. Eur J Anaesthesiol. 2015;32:812–818.
- Murouchi T, Iwasaki S, Yamakage M. Quadratus Lumborum Nerve Block: Analgesic Effects and Chronological Ropivacaine Concentrations After Laparoscopic Surgery. Reg Anesth Pain Med. 2016;41:146–150.
