Wrist Block – Landmarks and Nerve Stimulator Technique

INTRODUCTION

The wrist block involves anesthesia of the median, ulnar, and radial nerves, including the dorsal sensory branch of the ulnar nerve. The wrist block is simple to perform, essentially devoid of systemic complications, and highly effective for a variety of procedures on the hand and fingers. Wrist blocks can be used in the office or operating room setting. As such, skill in performing a wrist block should be in the armamentarium of every practitioner.1–9 A study comparing intra-articular and portal infiltration versus wrist block for analgesia after arthroscopy of the wrist has shown that wrist block provides better and more reliable analgesia in patients undergoing arthroscopy of the wrist without exposing patients to the risk of chondrotoxicity.10

INDICATIONS & CONTRAINDICATIONS

A wrist block is most commonly used for hand and finger surgery.11,12 The most common hand surgery in the United States is carpal tunnel release. Sir James Paget described carpal tunnel syndrome in 1853.1,13 Although Sir James Learmonth reported release of the carpal tunnel at the wrist in 1933, it was not until the 1950s that the surgery became popular through the efforts of George Phalen.14–16 Because of the ease of performing a wrist block, wrist blocks are used in a variety of settings including the emergency room, outpatient surgery centers, and office-based anesthesia practices. Hand surgeons rely on the wrist block to perform minor procedures in their offices. A wrist block can be used in a patient with a full stomach requiring emergency surgery, thereby obviating the need for general anesthesia and reducing the risk of aspiration.

Although only there are only a few contraindication to wrist blocks, local infection at the site of needle insertion and allergy to local anesthetic are the most cited. Patients are usually able to tolerate a tourniquet on the arm without anesthesia for 20 minutes; a wrist tourniquet can be tolerated for about 120 minutes.

FUNCTIONAL ANATOMY OF WRIST BLOCK

Innervation of the hand is shared by the ulnar, median, and radial nerves (Figure 80F–1). The ulnar nerve innervates more intrinsic muscles than the median nerve, and supplies digital branches to the skin of the medial one and a half digits (Figure 80F–2). A corresponding area of the palm is innervated by palmar branches that arise from the ulnar nerve in the forearm. The deep branch of the ulnar nerve accompanies the deep palmar arch and supplies innervation to the three hypothenar muscles, the medial two lumbrical muscles, all the interossei, and the adductor pollicis. The ulnar nerve also innervates the palmaris brevis muscle.

The median nerve traverses the carpal tunnel and terminates as digital and recurrent branches. The digital branches innervate the skin of the lateral three and a half digits and, usually, the lateral two lumbrical muscles. A corresponding area of the palm is innervated by palmar branches that arise from the median nerve in the forearm. The recurrent branch of the median nerve supplies the three thenar muscles. In the palm, the digital branches of the ulnar and median nerves lie deep in the superficial palmar arch, but in the fingers, they lie anterior to the digital arteries that arise from the superficial arch.

Although the innervation of the ring and middle fingers may vary, the skin on the anterior surface of the thumb is always supplied by the median nerve and that of the little finger by the ulnar nerve. The palmar digital branches of the median and ulnar nerves also innervate the nail beds of their respective digits.

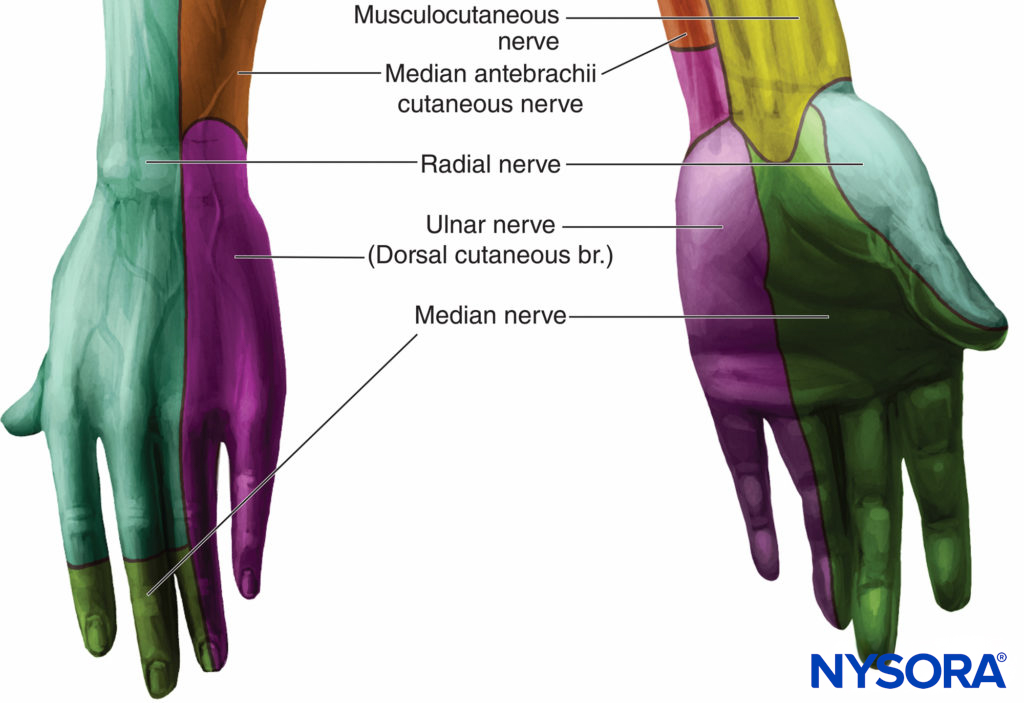

FIGURE 80F–1. Innervation of the hand.

The radial nerve passes along the front of the radial side of the forearm. It arises first from the lateral side of the radial artery and beneath the supinator muscle. About 3 in. above the wrist, it leaves the artery, pierces the deep fascia, and divides into two branches (Figure 80F–3). The superficial branch, the smaller of the two branches, supplies the skin of the radial side and base of the thumb, and joins the anterior branch of the musculocutaneous nerve. The deep branch of the radial nerve communicates with the posterior branch of the musculocutaneous nerve. On the dorsum of the hand, the deep branch of the radial nerve forms an arch with the dorsal cutaneous branch of the ulnar nerve.

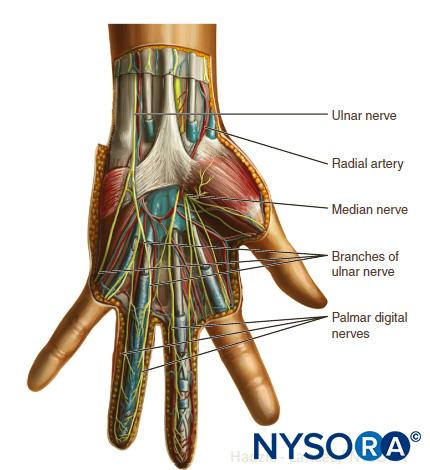

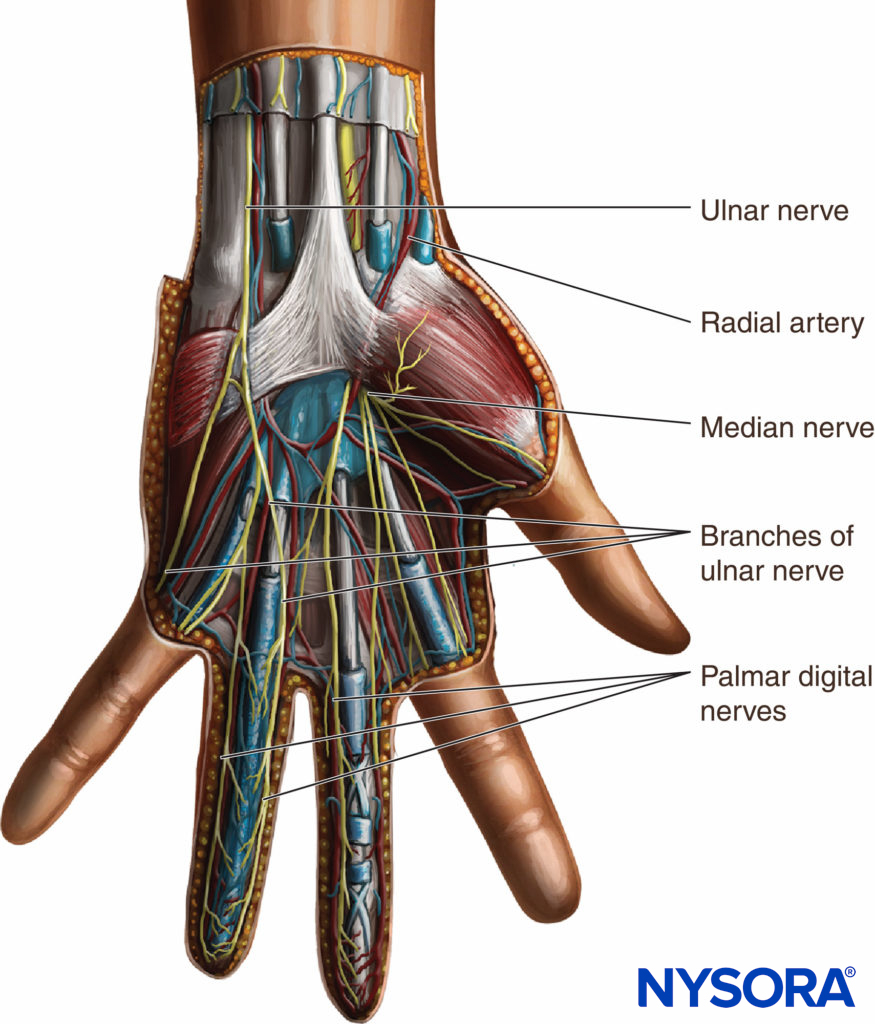

FIGURE 80F–2. Innervation of the hand: The course of the terminal nerves.

ANATOMIC LANDMARKS

The superficial branch of the radial nerve runs along the medial aspect of the brachioradialis muscle (see Figure 80F–3). It then passes between the tendon of the brachioradialis and radius to pierce the fascia on the dorsal aspect. Just above the styloid process of the radius, it gives off digital branches for the dorsal skin of the thumb, index finger, and lateral half of the middle finger. Several of its branches pass superficially over the anatomic “snuff box.”

The median nerve is located between the tendons of the palmaris longus and the flexor carpi radialis (Figures 80F–4; see 80F–2). The palmaris longus tendon is usually the more prominent of the two tendons, and the median nerve passes just lateral to it.

The ulnar nerve passes between the ulnar artery and tendon of the flexor carpi ulnaris (see Figures 80F–2 and 80F–4). The tendon of the flexor carpi ulnaris is superficial to the ulnar nerve.

EQUIPMENT

A standard regional anesthesia tray is prepared with the following equipment:

  • Sterile towels and 4-in. × 4-in. gauze pads
  • 10-mL syringes with local anesthetic (LA)
  • One 1.5 -in., 25-gauge needle

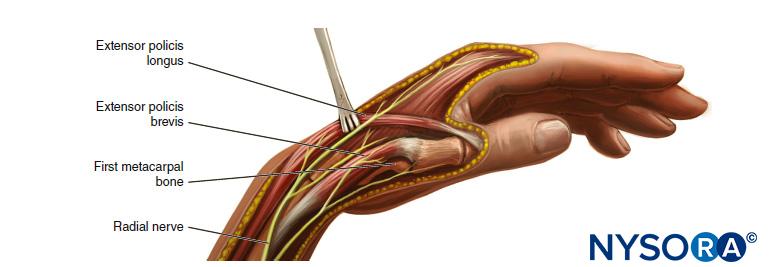

FIGURE 80F–3. Position and course of the radial nerve at the wrist.

TECHNIQUE

The patient is in the supine position with the arm abducted. The wrist should be kept in a slight dorsiflexion.

Block of the Radial Nerve

The radial nerve block is essentially a “field block” and requires a more extensive infiltration because of its less predictable anatomic location and division into multiple, smaller cutaneous branches. Five milliliters of LA is injected subcutaneously just above the radial styloid while advancing the needle medially (Figure 80F–5). The infiltration is then extended laterally, using an additional 5 mL of LA.

Block of the Dorsal Sensory Branch of the Radial Nerve

The dorsal sensory branch of the radial nerve is blocked by inserting the needle 1 cm proximal to the radial styloid, which is radial to the radial artery (Figure 80F–6). This branch of the radial nerve exits from between the brachioradialis and extensor carpi radialis longus 5–8 cm proximal to the radial styloid. The needle is advanced to the Lister tubercle, and if there are no paresthesias, 5 mL of LA is injected subcutaneously throughout this area.

Block of the Ulnar Nerve

The ulnar nerve is anesthetized by inserting the needle under the tendon of the flexor carpi ulnaris muscle close to its

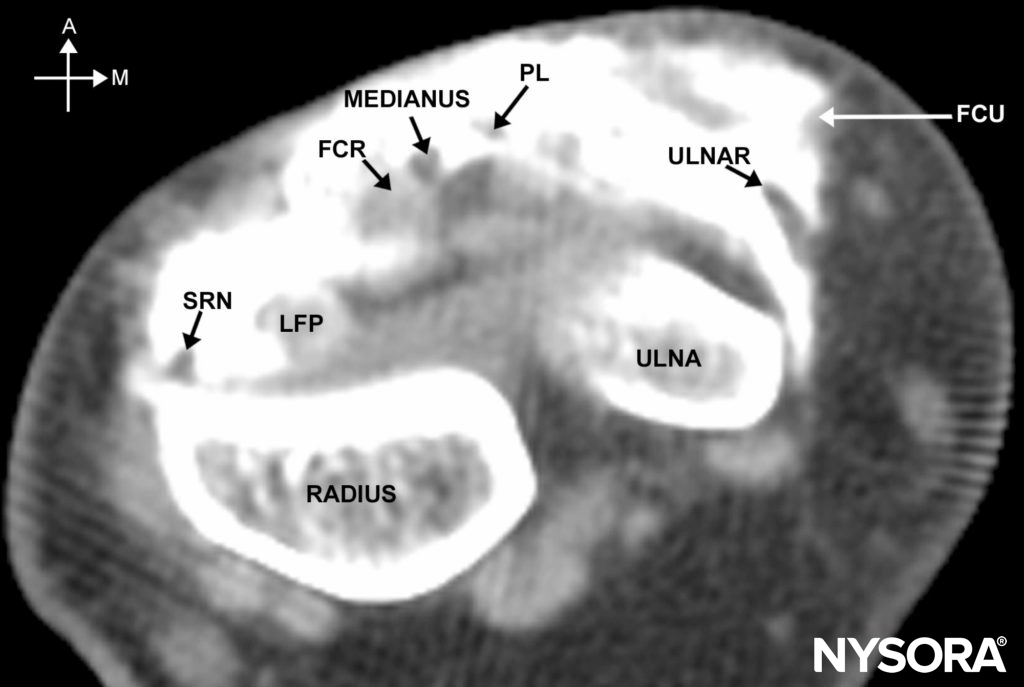

FIGURE 80F–4. Cross-sectional anatomy of the wrist as shown on an MRI scan just above the carpal tunnel. A = anterior, M = medial, SRN = superficial radial nerve, LFP = tendon of the flexor palmaris longus, FCR = flexor carpi radialis, PL = tendon of the palmaris longus,
FCU = tendon of the flexor carpi radialis.
FIGURE 80F–5. Block of the radial nerve above the head of the radius.

distal attachment just above the styloid process of the ulna (Figures 80F–7 and 80F–8; see Figure 80F–4). The needle is advanced 5–10 mm to just past the tendon of the flexor carpi ulnaris. Three to 5 mL of LA solution is injected. A subcutaneous injection of 2–3 mL of local anesthesia just above the tendon of the flexor carpi ulnaris is also advisable in blocking the cutaneous branches of the ulnar nerve, which often extend to the hypothenar area.

Block of the Dorsal Sensory Branch of the Ulnar Nerve

The dorsal sensory branch of the ulnar nerve is blocked by inserting the needle at the level of the ulnar styloid because it travels from palmar to dorsal in the area of the ulnar styloid (Figure 80F–9). Start the injection at the flexor carpi ulnaris and extend subcutaneously dorsally toward the distal radioulnar joint. Five milliliters of LA is injected subcutaneously throughout the area.

Block of the Median Nerve

The median nerve is anesthetized by inserting the needle between the tendons of the palmaris longus and flexor carpi radialis (Figures 80F–10 and 80F–11; see Figure 80F–8). The needle is inserted until it pierces the deep fascia. Three to 5 milliliters of LA is injected. Although the piercing of the deep fascia has been described to result in a fascial “click,” it is more reliable to simply insert the needle until it contacts the bone. At that point, the needle is withdrawn 2–3 mm and the LA is injected. Figure 80F–12 demonstrates the spread of the LA after injection of 5 mL using the described technique.

Clinical Pearls

  • A “fan” technique is recommended to increase the success rate of the median nerve block.

FIGURE 80F–6. Block of the superficial radial nerve
FIGURE 80F–7. Block of the ulnar nerve–the needle is shown inserted just medial to the flexor carpi ulnaris
FIGURE 80F–8. Tendons of the wrist flexors and position of the medianus nerve in relationship to the flexor tendons.
FIGURE 80F–9. Block of the superficial branch of the ulnar nerve.
FIGURE 80F–10. A maneuver to accentuate the tendon of the
flexor carpi radialis.

  • After the initial injection, the needle is withdrawn back to the skin level, redirected 30 degrees laterally, and advanced again to contact the bone.
  • After pulling back 1–2 mm off the bone, an additional 2 mL of LA is injected.
  • A similar procedure is repeated with a medial redirection of the needle.

Nerve Stimulation Technique

Median and ulnar nerve can also be blocked at the wrist using a nerve stimulator. These blocks may be used for finger flexor tendon repairs, when the surgeon wishes to test their function intraoperatively (function of the forearm muscles is not affected). The median nerve is found in the carpal tunnel between the palmaris longus and the flexor carpi radialis tendons, and the ulnar nerve is found between the flexor carpi ulnaris and the ulnar artery. Twitches are similar to elbow blocks except for the forearm pronation, which is missing. Two to 3 mL of LA is sufficient to block either nerve.

CHOICE OF LOCAL ANESTHETIC

The choice of the type and concentration of LA for wrist blockade is based on the desired duration. Lidocaine is the most used anesthetic for wrist block, but bupivacaine can be used safely, also.16 Table 80F–1 provides onset times and duration for some commonly used LAs. Clean the entire wrist area with a disinfectant solution. Aspirate prior to injection of LA to avoid intravascular injection.

BLOCK DYNAMICS AND PERIOPERATIVE MANAGEMENT

This technique is associated with moderate patient discomfort because multiple insertions and subcutaneous injections are required. Appropriate sedation and analgesia, midazolam (2–4 mg) and alfentanil (250–500 mcg), are required to ensure the patient’s comfort. A typical onset time for a wrist block is 10–15 minutes, depending primarily on the concentration of LA used. Sensory anesthesia of the skin develops faster than the motor block. Placement of an Esmarch latex-free bandage or a tourniquet at the level of the wrist is well tolerated and does not require additional blockade.

FIGURE 80F–11. Block of the median nerve at the wrist. The needle is shown inserted just medial to the flexor carpi radialis.

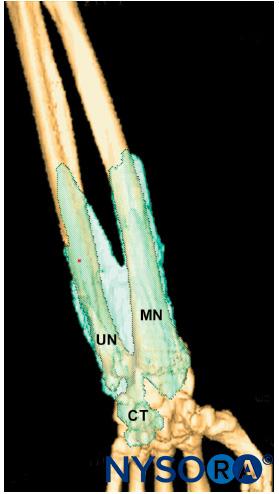

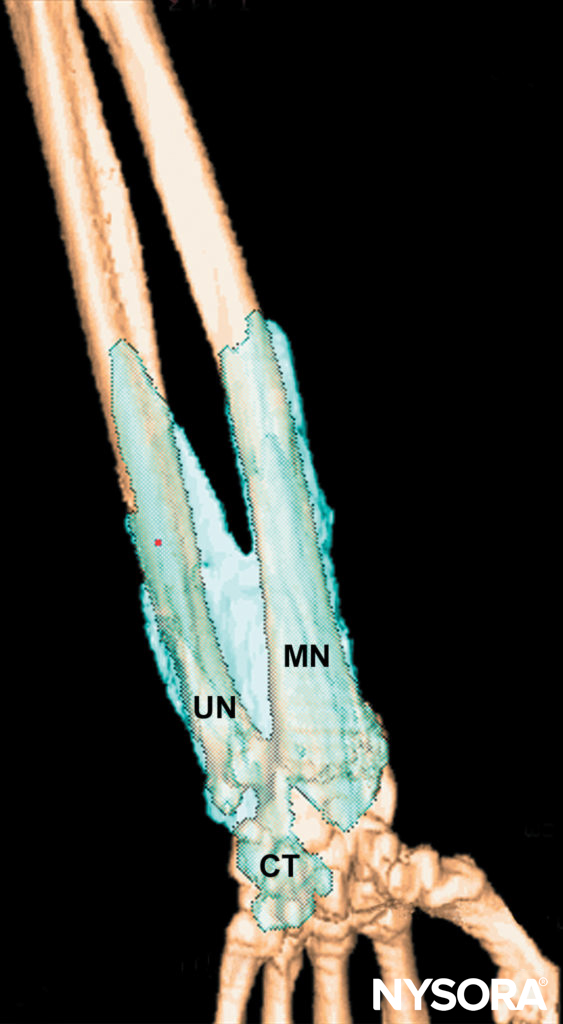

FIGURE 80F–12. Distribution of the dye after wrist block.
MN = median nerve, UN = ulnar nerve, CT = carpal tunnel.

TABLE 80F–1.Onset times and duration for commonly used local anesthetic mixtures.

 Onset (min)Anesthesia (h)Analgesia(h)
1.5% Mepivacaine
(+ HCO3
–)
15–202–3 3–5
2% Lidocaine
(+ HCO3
–)
10–202–53–8
0.5% Ropivacaine 15–30 4–8 5–12
0.75% Ropivacaine 10–155–106–24
0.5% Bupivacaine
(or L-bupivacaine)
15–30 5–15 6–30

TABLE 80F–2.Complications from wrist block.

Infection This should be very rare with the use of an aseptic technique.
Hematoma Avoid multiple needle insertions for superficial blocks. Most superficial blocks can be accomplished with one or two needle insertions.
Use 25-gauge needle and avoid
puncturing superficial veins.
Vascular
complications
Do not use epinephrine with wrist and finger blocks.
Nerve injuryDo not inject when the patient complains of pain or high pressure on injection is detected. Do not reinject the median and ulnar nerves.
OtherInstruct the patient on the care of the insensate extremity.

Clinical Pearl

  • Both nerves lie quite superficially in tight compartments and cannot move away from the needle. Extra caution should therefore be used when advancing the needle and injecting LA.

COMPLICATIONS AND HOW TO AVOID THEM

Most common complications after wrist block are residual paresthesias due to an inadvertent intraneural injection. Systemic toxicity is rare because of the distal location of the blockade (Table 80F–2).

REFERENCES

  1. Derkash RS, Weaver JK, Berkeley ME, et al: Office carpal tunnel release
    with wrist block and wrist tourniquet. Orthopedics 1996;19:589–590.
  2. Gebhard RE, Al-Samsam T, Greger J, et al: Distal nerve blocks at the wrist
    for outpatient carpal tunnel surgery offer intraoperative cardiovascular
    stability and reduce discharge time. Anesth Analg 2002;95:351–355.
  3. Martinotti R, Berlanda P, Zanlungo M, et al: Peripheral anesthesia
    techniques in surgery of the arm. Minerva Chir 1999;54:831–833.
  4. Melone CP Jr, Isani A: Anesthesia for hand injuries. Emerg Med Clin
    North Am 1985;3:235–243.
  5. Leversee JH, Bergman JJ: Wrist and digital nerve blocks. J Fam Pract
    1981;13:415–421.
  6. Dushoff IM: Hand surgery under wrist block and local infiltration
    anesthesia, using an upper arm tourniquet. Plast Reconstr Surg 1973;51:
    685–686.
  7. Vatashsky E, Aronson HB, Wexler MR, et al: Anesthesia in a hand surgery
    unit. J Hand Surg [Am] 1980;5:495–497.
  8. Klezl Z, Krejca M, Simcik J: Role of sensory innervation variations for
    wrist block anesthesia. Arch Med Res 2001;32:155–158.
  9. Ferrera PC, Chandler R: Anesthesia in the emergency setting: Part I. Hand and foot injuries. Am Fam Physician 1994;50:569–573.
  10. Agrawal Y, Russon K, Chakrabarti I, Kocheta A. Intra-articular and portal infiltration versus wrist block for analgesia after arthroscopy of the wrist: a prospective RCT. Bone Joint J. 2015; 97-B(9): 1250–1256.
  11. Delaunay L, Chelly JE: Blocks at the wrist provide effective anesthesia for carpal tunnel release. Can J Anaesth 2001;48:656–660.
  12. Dupont C, Ciaburro H, Prevost Y, et al: Hand surgery under wrist block and local infiltration anesthesia, using an upper arm tourniquet. Plast Reconstr Surg 1972;50:532–533.
  13. Paget J: Lectures on Surgical Pathology. Longman, Brown, Green, Longmans/London, 1853.
  14. Learmonth JR: The principle of decompression in the treatment of certain diseases of peripheral nerves. Surg Clin North Am 1933;13:905–913.
  15. Dellon AL, Amadio PC: James R. Learmonth: The first peripheral nerve surgeon. J Reconstr Microsurg 2000;16:213–217.
  16. Phalen GS: Spontaneous compression of the median nerve at the wrist. J Am Med Assoc 1951;145:1128–1133.
  17. Nystrom A, Lindstrom G, Reiz S, et al: Bupivacaine: A safe local anesthetic for wrist blocks. J Hand Surg [Am] 1989;14:495–498.



Paul Hobeika, Tessy Castermans, Joris Duerinckx, and Sam van Boxstael
